Transcutaneous Electric Nerve Stimulation (TENS)

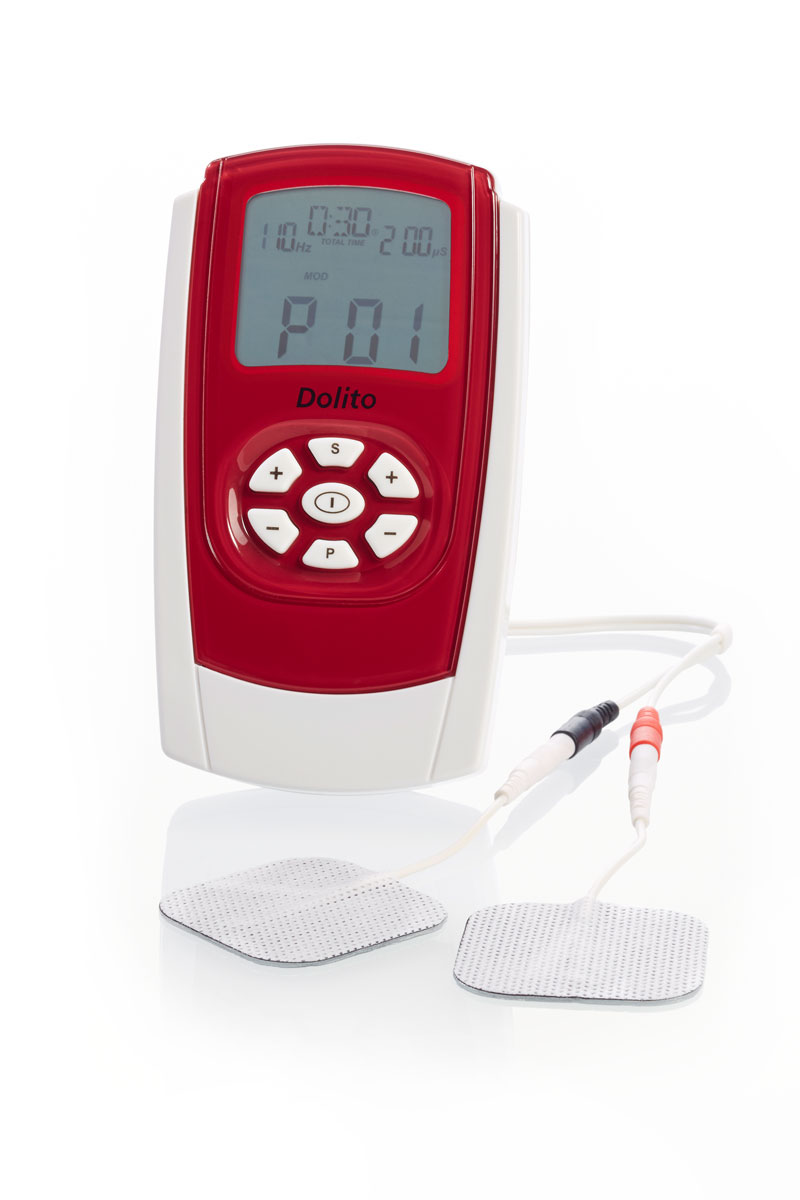

Dolito

The Dolito is an inexpensive digital TENS unit for pain management that contains programs with continuous, modulated, burst- or Han-mode. One program is also suitable for muscle stimulation and another one can be customized according to individual wishes. The Dolito includes a therapy-memory that summarizes the time the patient has used the device, and indicates the average intensity used on each channel.













Features and Benefits:Technical Data:1 Set Dolito contains:Downloads:
  • 6 programs including 1 customizable program
  • 5 different modes (continuous, modulated, burst, Han and W/R)
  • Dual channel
  • Timer and milliamps displayed on the LCD screen
  • Custom program treatment times from 1 minute to 10 hours
  • Records time in use and average intensity for each channel
  • High safety level to protect the user
  • CE 0123
  • Dual channel: individually isolated circuits.
  • Waveform: Asymmetrical, rectangular bi-phasic with zero DC current
  • Amplitude: 0 – 80 mA-Type: Constant Current
  • Selectable pulse width: 50 µS-350 µS
  • Pulse Rate: 1 – 150 Hz
  • Ramp up time: 0.1 – 9.9 seconds
  • Operated by 1 battery 9V
  • 1 device Dolito
  • 2 lead wires to connect 2 pairs of electrodes
  • 4 self-adhesive electrodes (40 x 40 mm)
  • 1 battery 9V
  • 1 operators manual
